记录纸刀PERFORATING STEEL RULE
特点
此刀具用于在连续票据、背胶纸、薄膜等基材上进行齿线加工和切片。

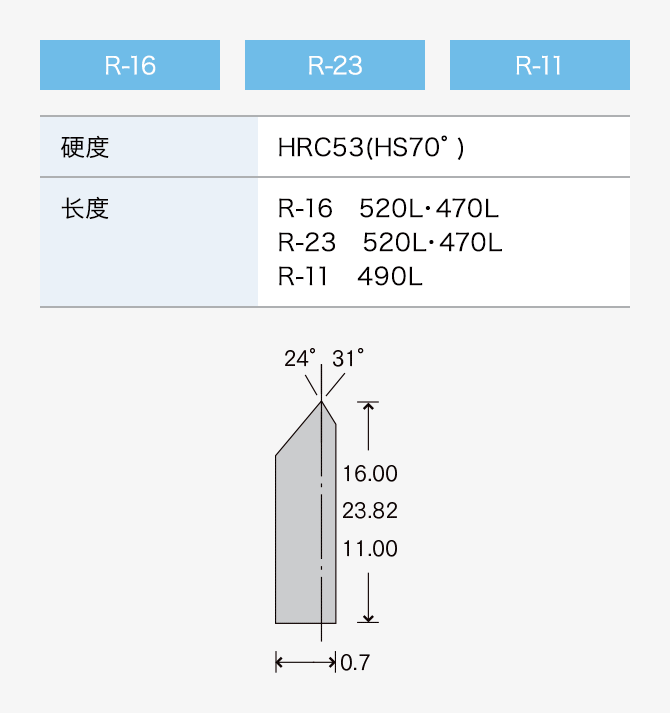

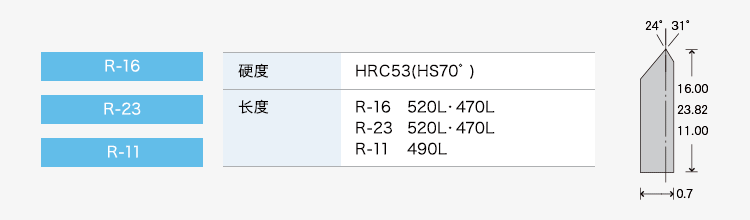

标准型

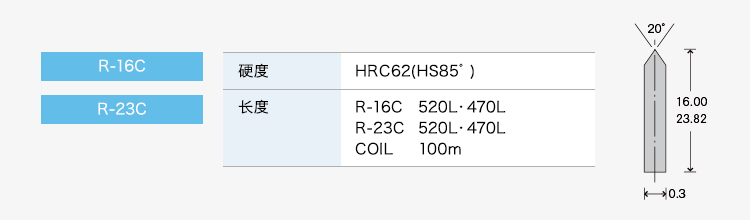

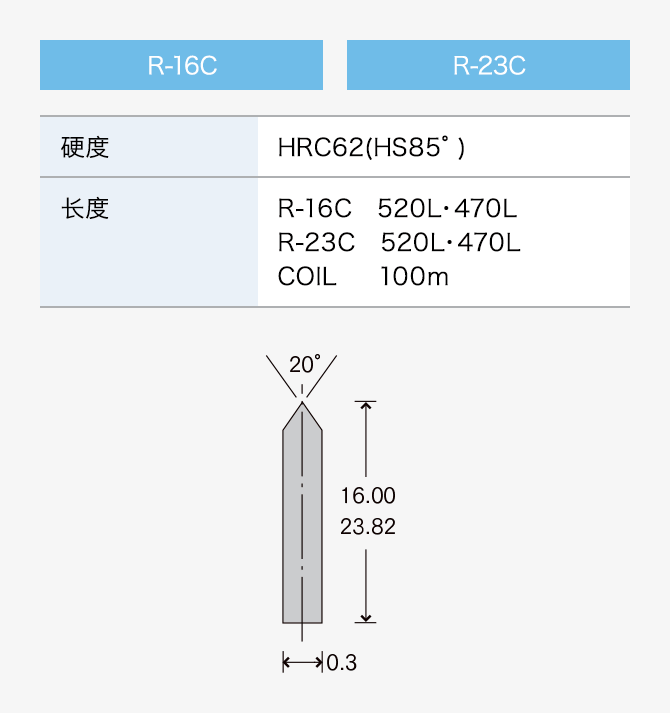

薄刀型
记录纸刀 间距表
| 齿刀 间距 刀（CUT)×槽（UNCUT) |
标准型(0.7T) | 薄刀型(0.3T) | ||
|---|---|---|---|---|
| R-16 | R-23 | R-16C | R-23C | |
| 双刀 | ○ | ○ | ○ | ○ |
| 单刀 | ○ | ○ | ||
| 1.0×0.5 | ○ | |||
| 1.0×0.7 | ○ (470L) | |||
| 1.0×1.0 | ○ | ○ | ○ | |
| 1.2×0.8 | ○ (470L) | |||
| 1.5×0.5 | ○ | |||
| 1.5×0.8 | ○ (470L) | |||
| 1.5×1.0 | ○ | ○ (470L) | ○ | |
| 1.9×0.8 | ○ (470L) | ○ (470L) | ○ | |
| 2.0×0.5 | ○ | ○ (470L) | ||
| 2.0×0.6 | ○ (470L) | |||
| 2.0×0.7 | ○ | |||
| 2.0×0.8 | ○ | ○ | ○ | |
| 2.0×1.0 | ○ | ○ | ○ | ○ |
| 2.3×0.8 | ○ | ○ | ○ | |
| 2.4×0.8 | ○ | |||
| 2.5×0.5 | ○ | |||
| 2.5×0.6 | ○ (470L) | |||
| 2.5×0.7 | ○ (470L) | |||
| 2.5×0.8 | ○ | ○ | ○ | |
| 2.5×1.0 | ○ | ○ | ○ | |
| 2.8×0.8 | ○ | ○ (470L) | ○ | |
| 3.0×0.5 | ○ | |||
| 3.0×0.6 | ○ | |||
| 3.0×0.7 | ○ | |||
| 3.0×0.8 | ○ | ○ | ○ | ○ |
| 3.0×1.0 | ○ | ○ | ○ | ○ |
| 3.2×0.8 | ○ | |||
| 3.4×0.8 | ○ | |||
| 3.5×0.7 | ○ (470L) | |||
| 3.5×0.8 | ○ | |||
| 3.5×1.0 | ○ | ○ (470L) | ○ | ○ |
| 4.0×0.5 | ○ | |||
| 4.0×0.6 | ○ | |||
| 4.0×0.7 | ○ | |||
| 4.0×0.8 | ○ | ○ (470L) | ○ | ○ |
| 4.0×1.0 | ○ | ○ | ○ | ○ |
| 5.0×0.8 | ○ | |||
| 5.0×1.0 | ○ | ○ | ||
长度820L
| 齿刀 间距 刀（CUT)×槽（UNCUT) |
标准型(0.7T) | 薄刀型(0.3T) | |
|---|---|---|---|
| R-16 | R-23 | R-23C | |
| 单刀 | ○ | ||
| 2.5×0.8 | ○ | ||
| 2.5×1.0 | ○ | ||
| 3.0×1.0 | ○ | ○ | ○ |
卷长100m
| 齿刀 间距 刀（CUT)×槽（UNCUT) |
薄刀型(0.3T) | |
|---|---|---|
| R-16C | R-23C | |
| 双刀 | ○ | ○ |
| 2.0×0.8 | ○ | |
| 2.0×1.0 | ○ | |
| 2.3×0.8 | ○ | |
| 2.5×0.8 | ○ | |
| 2.5×1.0 | ○ | |
| 3.0×0.8 | ○ | |
| 3.0×1.0 | ○ | |
| 3.2×0.8 | ○ | |
| 4.0×0.8 | ○ | |
| 4.0×1.0 | ○ | |
密齿刀
| 密齿刀间距 | R-16 | R-23 | 参考使用纸厚 |
|---|---|---|---|
| 0.50×0.23 | ○ | 70kg〜135kg | |
| 0.35×0.23 | ○ | ○ | 40kg〜90kg |
| 0.35×0.20 | ○ | 40kg〜135kg | |
| 0.35×0.15 | ○ | ○ | 40kg〜70kg |
| 0.28×0.23 | ○ | ○ | 40kg〜110kg |
| 0.20×0.20 | ○ | 70kg〜135kg | |
| 0.20×0.15 | ○ | 40kg〜70kg |
