metanical cushion

Features

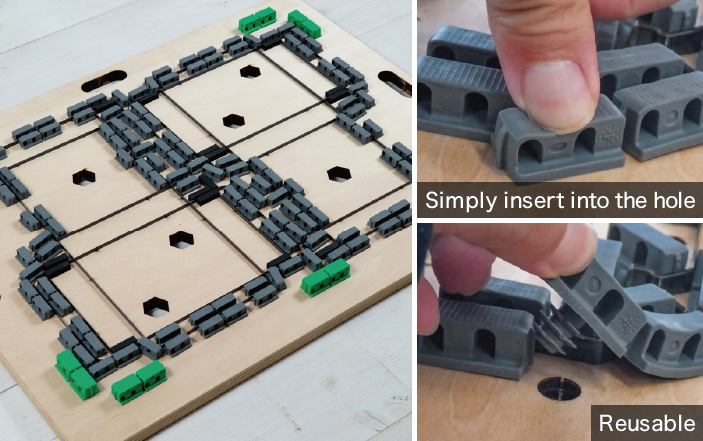

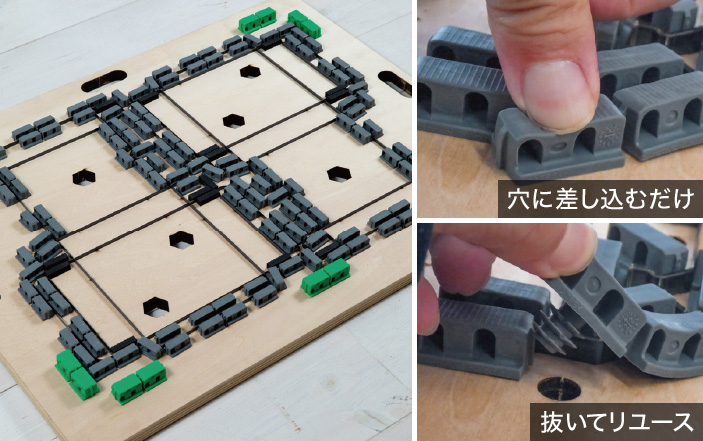

Simply insert the metanical cushion into the holes machined by laser!

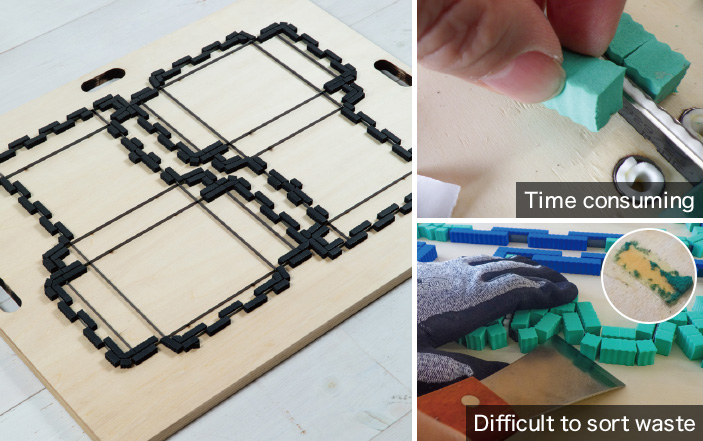

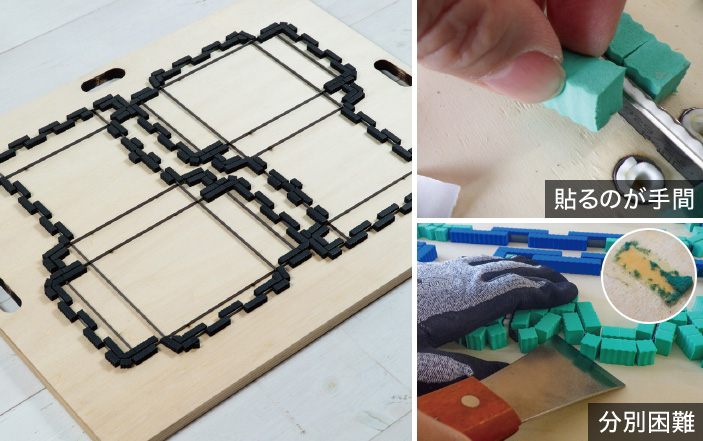

Installation and removal time reduced to one-third of the current wooden dies!
Since it is easy to sort waste, recycling is possible at a lower cost than the current state!

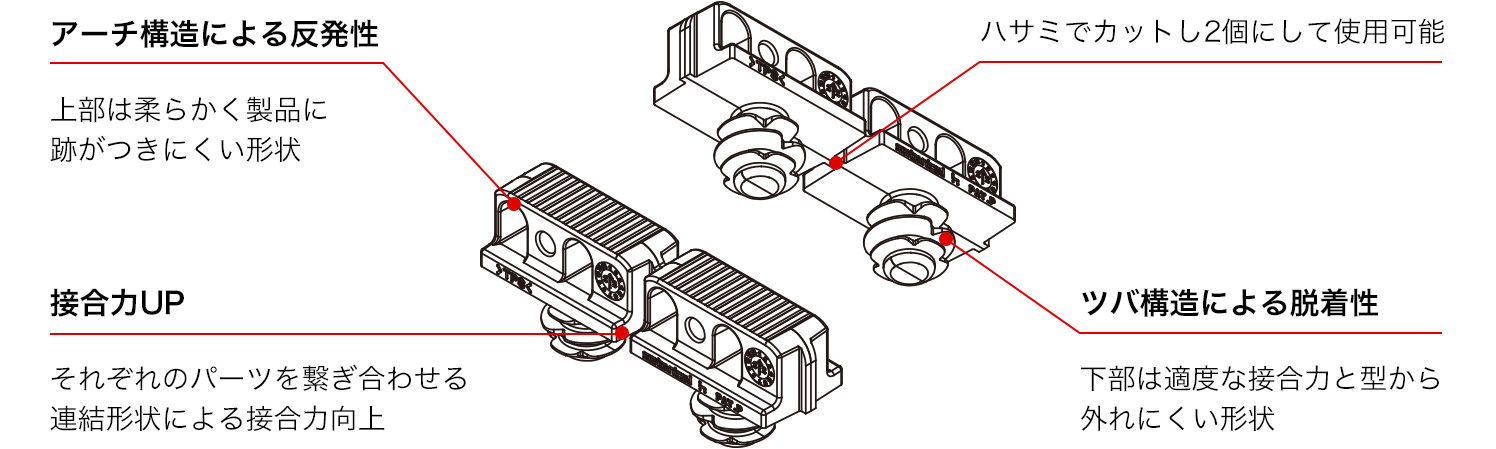

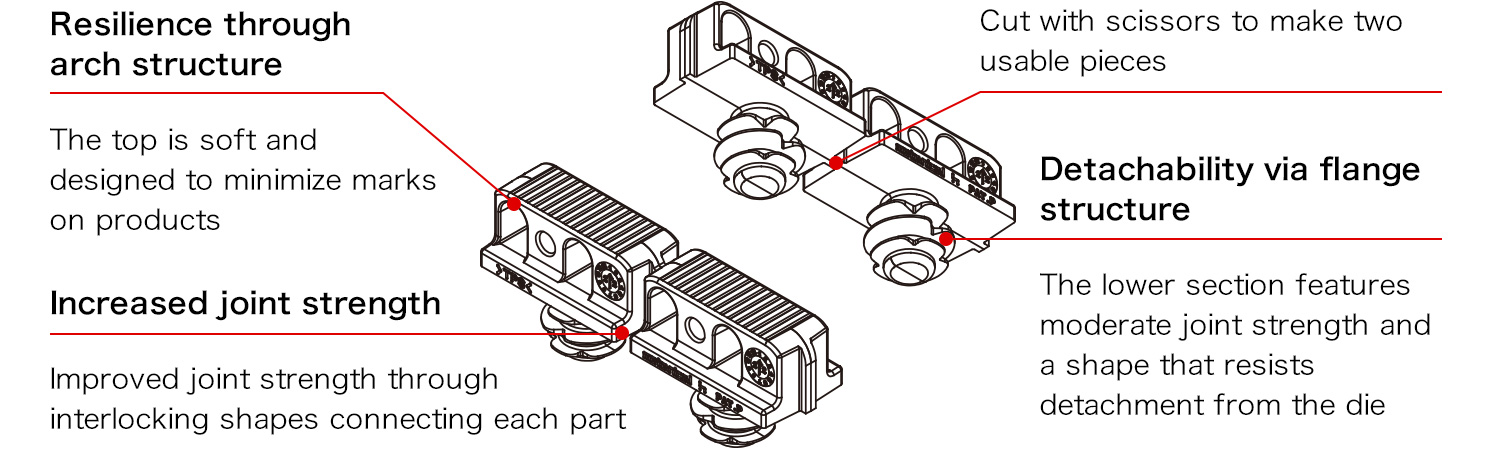

Elastic material with both Joining and separation functions

•

•

Approximately one-third reduction in work time compared to current wooden dies.
Reusable with low environmental impact, and can be recycled into wood biomass or iron.

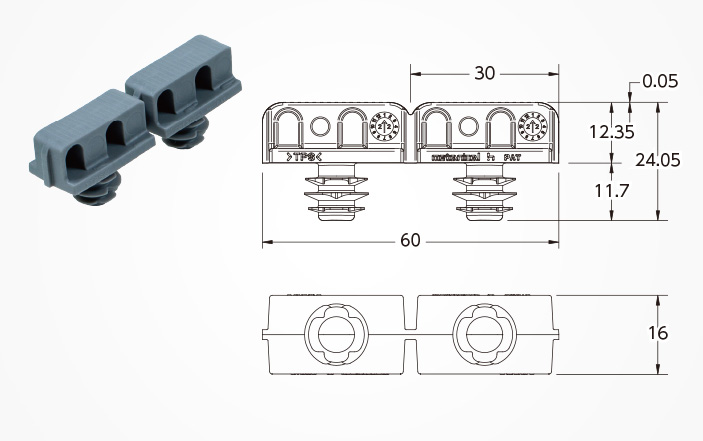

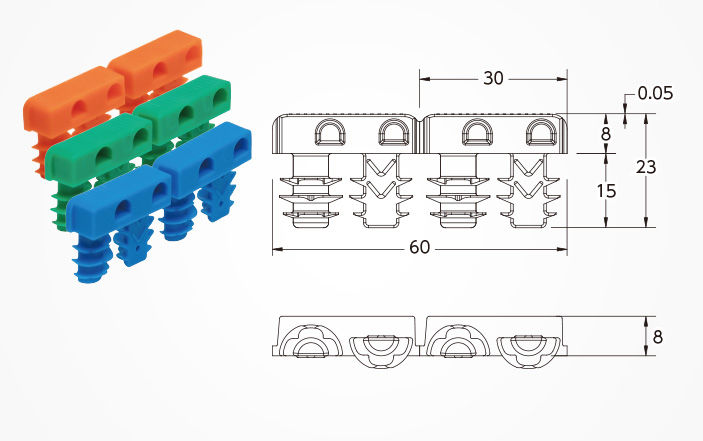

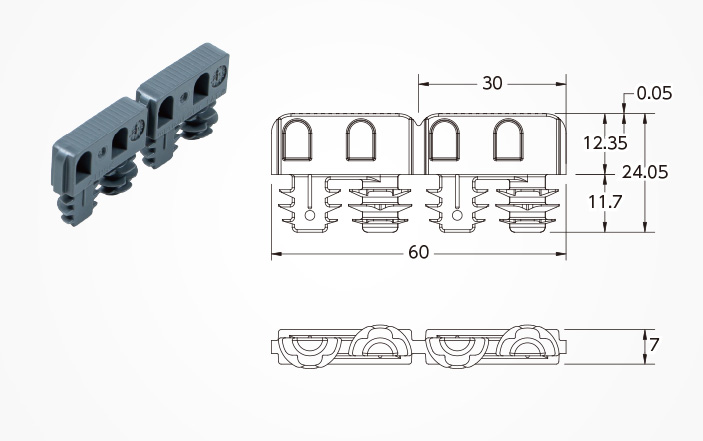

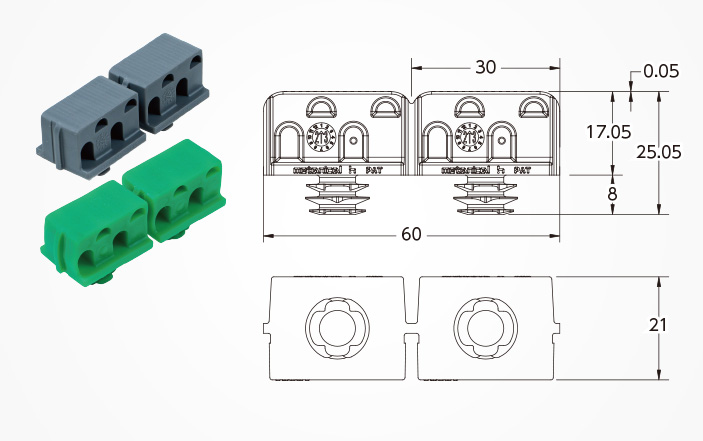

Specification

•

•

•

•

*The mounting hole diameter is the finished dimension after laser processing. The CAD data dimensions are the pre-machining values (machined with a laser width of 0.7 mm).
*Hardness is the measurement value for solid material from resin manufacturers. Due to its three-dimensional shape, it can be used more flexibly than the numerical value.

Reusable thermoplastic elastomer

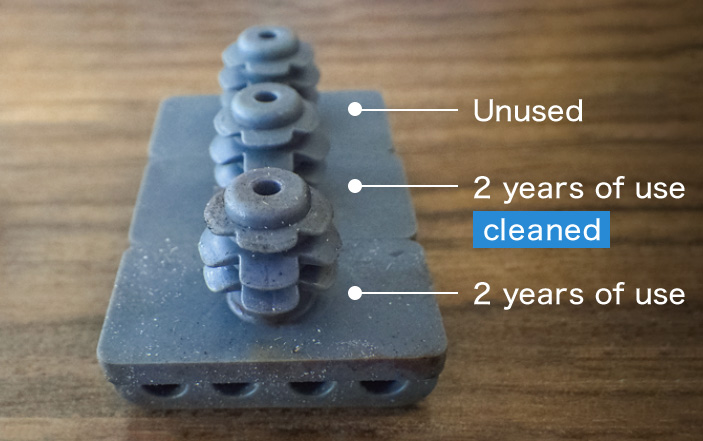

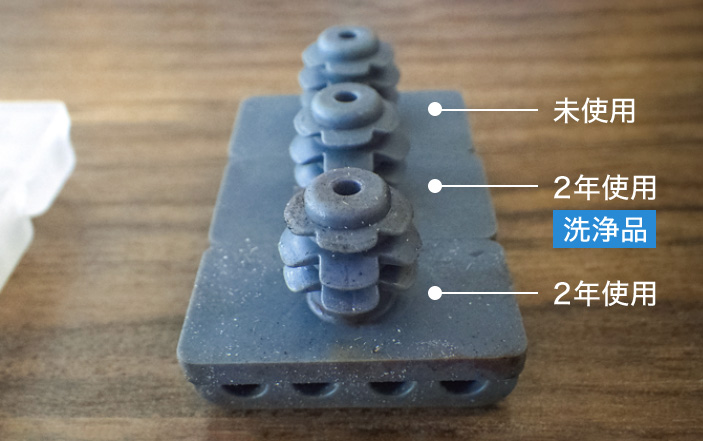

Even after two years of use, the shape, hardness, and joint strength remain virtually unchanged from unused items, making it reusable.

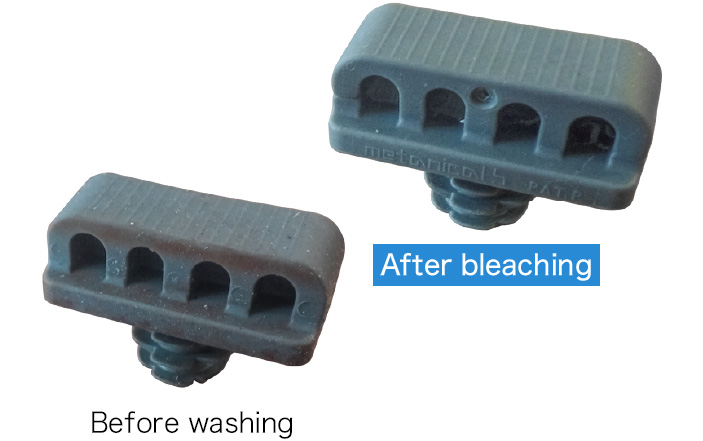

Washing machine could remove foreign matter, and using a resolving bleach removes rust stains, making reuse easier.

•

•

When disposing of wooden dies, each material can be separated: plywood becomes wood chips, steel rules go to steel production, and elastomer materials can be reused. This enables resource recovery and material recycling.

*The values listed in the catalog are representative values and are not guaranteed values.

Product movie

•
