SLITTER
Features
Tsukatani offers shear slitting tools. Sizes given in the table below are for standard specification products. Contact us if you need a slitter in other sizes.

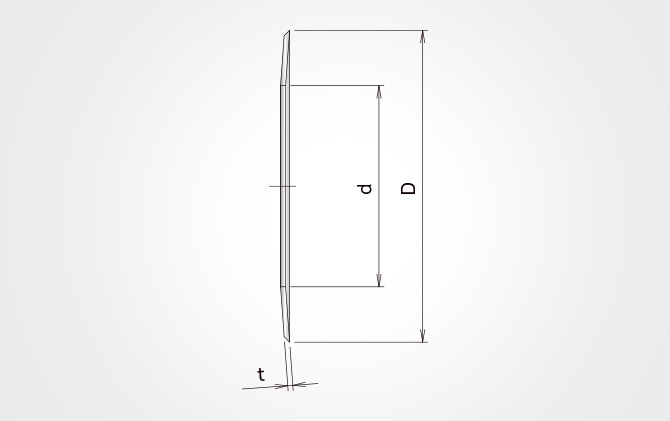

Upper blade
| Outer diameter (D) | × | Inner diameter (d) | × | Thickness (t) |
|---|---|---|---|---|
| 62φ | × | φ38 | × | 0.5 |
| 62φ | × | φ40 | × | 1.0 |
| 65φ | × | φ40 | × | 0.5 |
| 68φ | × | φ46 | × | 0.5 |
| 70φ | × | φ40 | × | 0.5 |
| 90φ | × | φ60 | × | 1.2 |

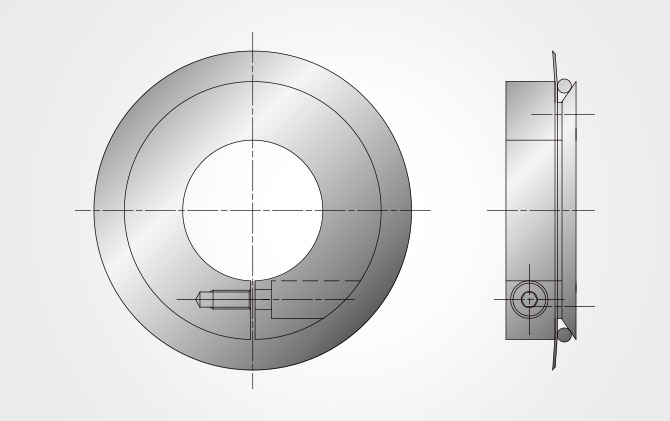

Upper blade holder
Lower blade

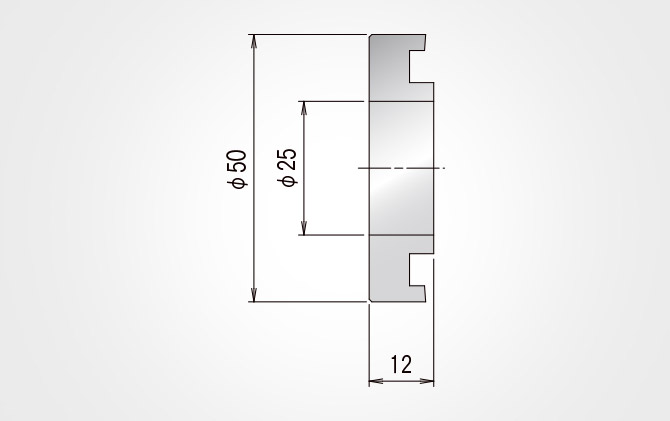

50φ×φ25×12（15）

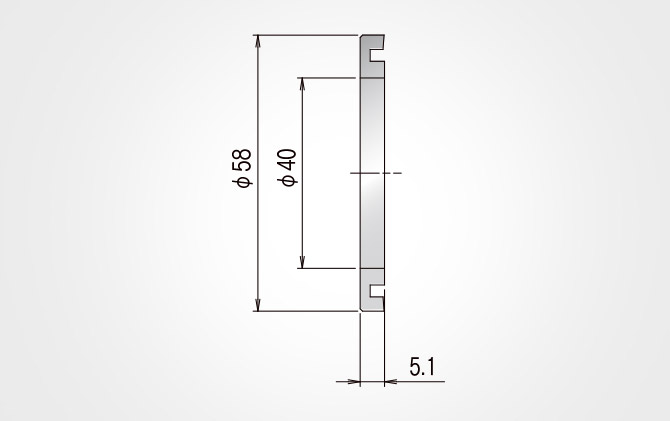

58φ×φ40×5.1

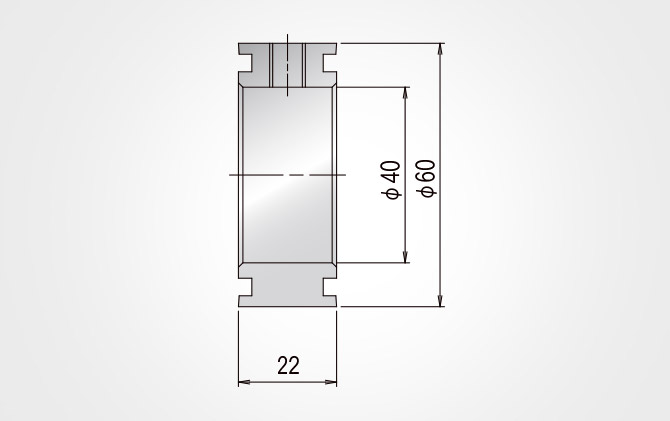

60φ×φ40×22
