Punch Parts For Pouch

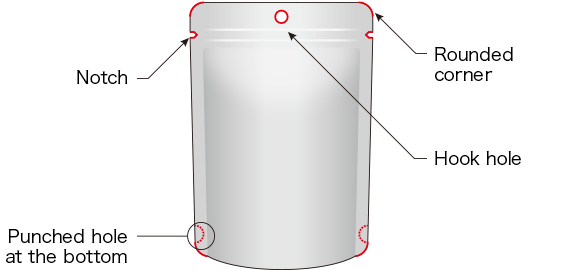

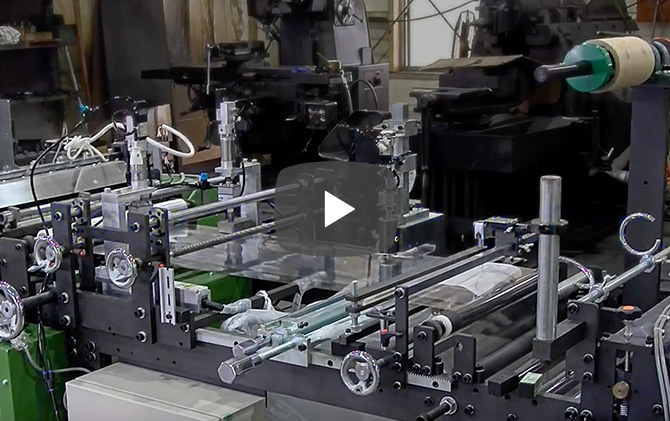

Punching parts used to make holes and notches in flexible packaging materials. Tsukatani’s advanced technologies accumulated in various industries enable cutting and notching of films. Custom-designed punching parts in special shapes are also available.
Product lineup

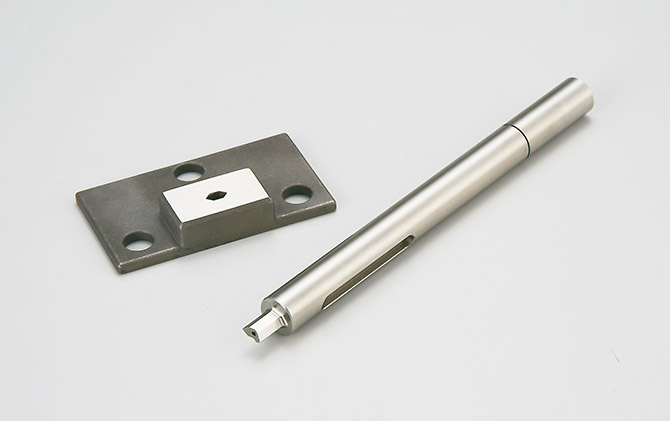

Standard punching/notching parts (T)
| Dies | |
|---|---|
| Outer diameter | 55×32 |
| Height | 9.2 |
| Pin | |
| Outer diameter | 10 |
| Height | 120 |
| No air evacuation | |
| With air evacuation | |
| Shape of hole | |
|---|---|
| Round |  |
| Hexagonal |  |
| Oval |  |
| Drop |  |
| Diamond |  |
| Half-round MP edge |  |
| I-shaped notch |  |

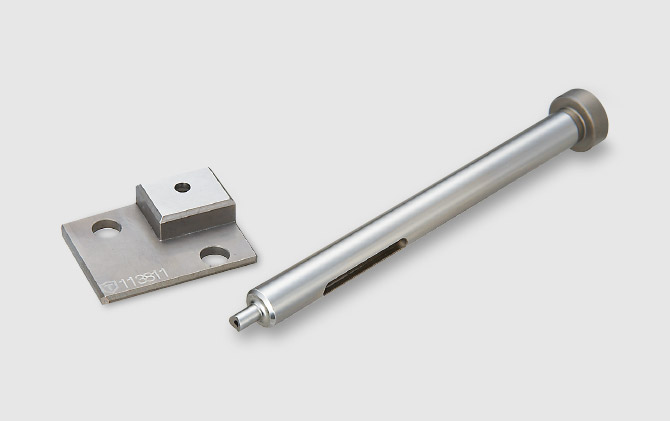

Punching/Notching parts for making the closest approach (T)
| Dies | |
|---|---|
| Outer diameter | 40×32 |
| Height | 9.2 |
| Pin | |
| Outer diameter | 10 |
| Height | 120 |
| No air evacuation | |
| With air evacuation | |
| Shape of hole | |
|---|---|
| Round | |
| Hexagonal | |
| Oval | |
| Drop | |
| Diamond | |

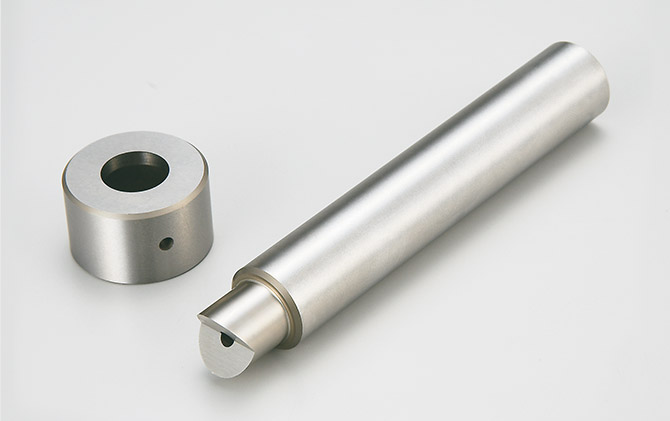

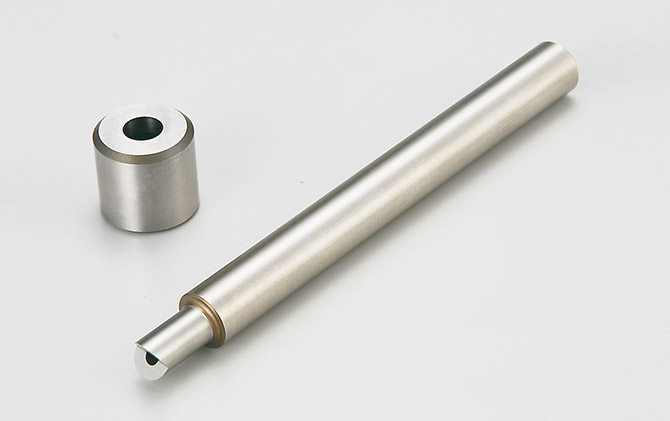

Standard punching/notching parts (N)
| Dies | |
|---|---|
| Outer diameter | 20 |
| Height | 19 |
| Pin | |
| Outer diameter | 12 |
| Height | 124 |
| Straight | |
| With notch | |
| With air evacuation | |
| With air evacuation | |
|---|---|
| Round | |
| Hexagonal | |
| Oval | |
| Drop | |
| Diamond | |
| Half-round MP edge | |
| I-shaped notch | |

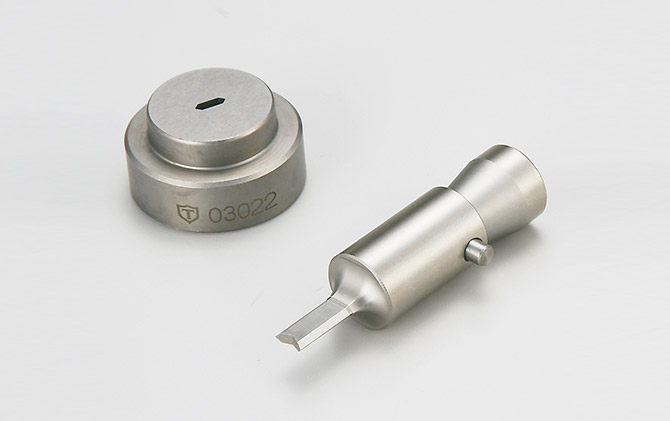

Standard punching/notching parts (M)
| Dies | |
|---|---|
| Outer diameter | 32 |
| Height | 17.3 |
| Pin | |
| Outer diameter | 15 |
| Height | 58 |
| No air evacuation | |
| With air evacuation | |
| Shape of hole | |
|---|---|
| Round | |
| Hexagonal | |
| Oval | |
| Drop | |
| Diamond | |
| Half-round MP edge | |
| I-shaped notch | |

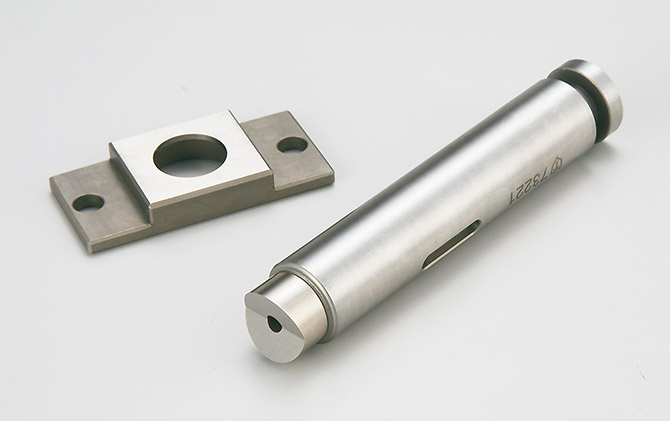

Standard bottom punching parts (T)
| Dies | |
|---|---|
| Outer diameter | 60×28 |
| Height | 9.2 |
| Pin | |
| Outer diameter | 20 |
| Height | 110 |
| No air evacuation | |
| With air evacuation | |
| Shape of hole | |
|---|---|
| Round | |
| Oval | |
Standard bottom punching parts (N)
| Dies | |
|---|---|
| Outer diameter | 32 |
| Height | 19 |
| Pin | |
| Outer diameter | 20 |
| Height | 125 |
| Straight | |
| Evacuation from bottom | |
| Evacuation from side | |
| Shape of hole | |
|---|---|
| Round | |
| Oval | |

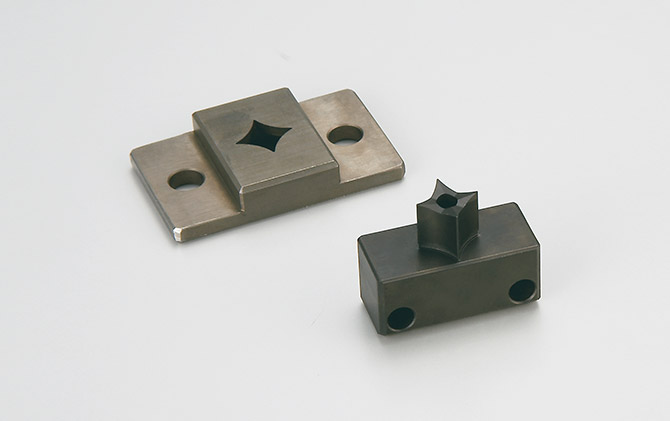

Standard rounded-corner parts (T)
| Dies | |
|---|---|
| Outer diameter | 49×30 |
| Height | 9.2 |
| Pin | |
| Outer diameter | 32×15 |
| Height | 25 |
| No air evacuation | |
| With air evacuation | |
| Shape of hole | |
|---|---|
| Half round |  |
| Full round |  |

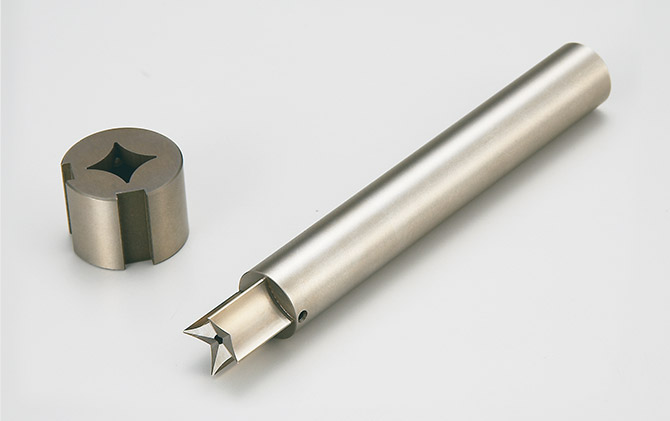

Standard rounded-corner parts (N)
| Dies | |
|---|---|
| Outer diameter | 26 |
| Height | 19 |
| Pin | |
| Outer diameter | 16 |
| Height | 125 |
| Straight | |
| Evacuation from bottom | |
| Evacuation from side | |
| Shape of hole | |
|---|---|
| Half round | |
| Full round | |
