Tsukatani Hamono Mfg. is a leading manufacturer of industrial specialty blades in Japan.

FLEXIBLE PINNACLE DIE®

Flexible Pinnacle Die achieves various designs.

"Flexible Pinnacle Die" is a product of Tsukatani Hamono Mfg. Co., Ltd.
Having sharp cutting edge, "Flexible Pinnacle Die" cuts and dies very effectively. Customers in the die cutting industry really love the performance of our products, and the proven track record gives us self-confidence.

AP type

Flexible pinnacle dies fabricated by Tsukatani's unique sharpening technologies. A keen-edged blade honed with high precision brings sharp and stable cutting performance to even materials of complicated shape.

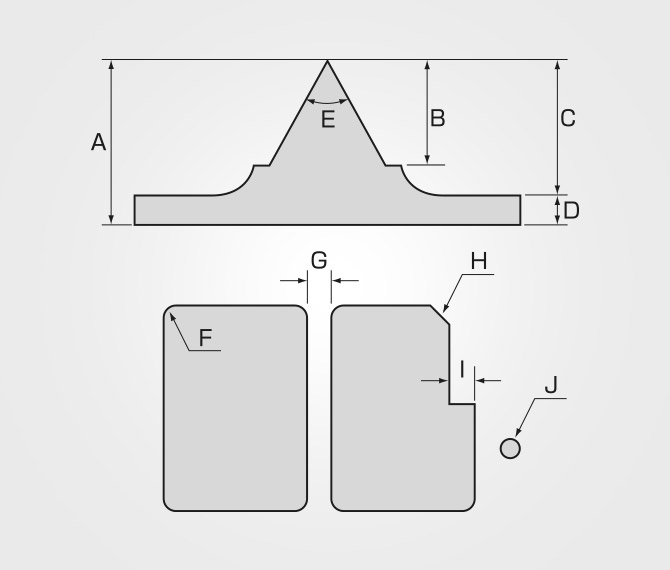

Cross-sectional view, dimensional drawing

  • Standard specification of Flexible Pinnacle Die
    Standard specification of Flexible Pinnacle Die

Standard specification of Flexible Pinnacle Die

Standard product (AP) Hardness HRC46

For rotary press For flat die cutting
A: Edge height 0.35〜0.58 0.6 0.8 1.2
B: Edge depth 0.20〜0.30 0.3 0.4 0.8
C: Etching depth 0.22〜0.45 0.4 0.6 1.0
D: Base thickness 0.13〜0.18 0.2 0.2 0.2
E. Edge angle 40°, 50°, 60°, 80°

Unit: mm

Edge height 0.35〜0.58 0.6 0.8 1.2
Edge angle For rotary press (For edge angle 60°) For flat die cutting (For edge angle 50°)
F: Min. radius 0.3 0.25 0.3 0.55
G: Min. line gap 0.7 0.6 0.7 1.1
H: Min. C-face 0.2 0.15 0.2 0.35
I: Min. crank 0.2 0.2 0.2 0.2
J: Min. diameter 0.7 0.6 0.7 1.1

Unit: mm

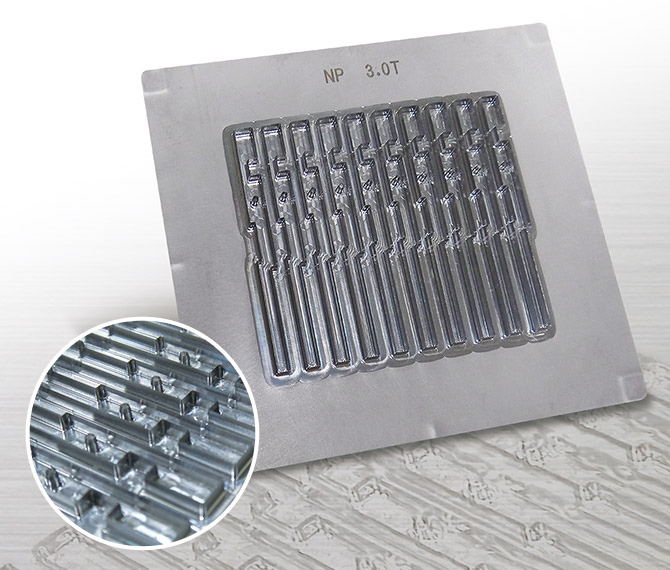

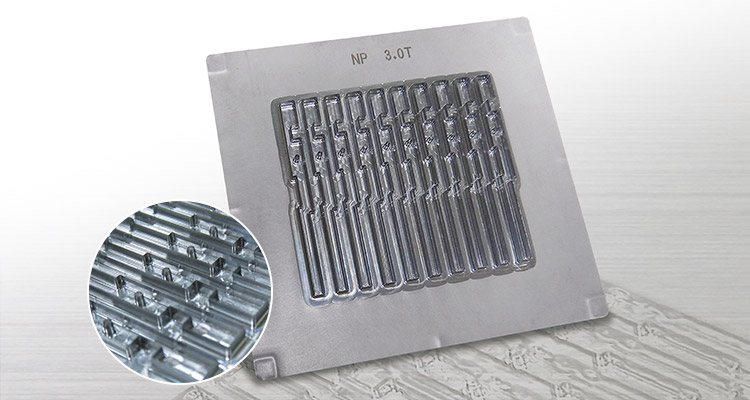

NP type

Cut thick material! Straight & sharp cut! Low cutting pressure!
New Pinnacle Die cuts thick material with low die/cutting pressure.
Processing restrictions are alleviated and dies with still more complicated shapes can be fabricated.

This die enables to punch delicate and complicated shapes

Edge height 3.0mm enables sharp and powerful punching

By improving its cutting edge, it realizes smooth cutting even in narrow space.

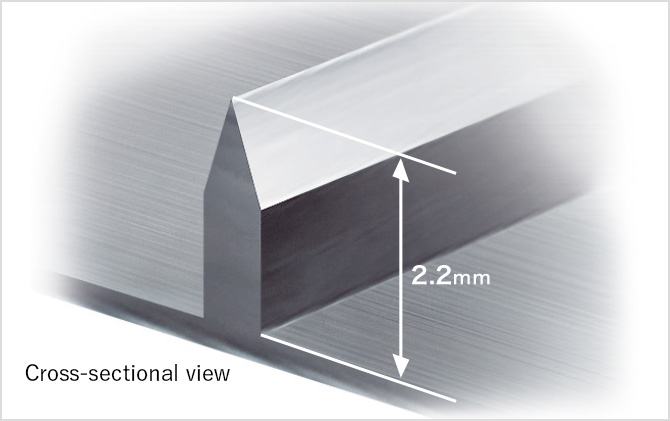

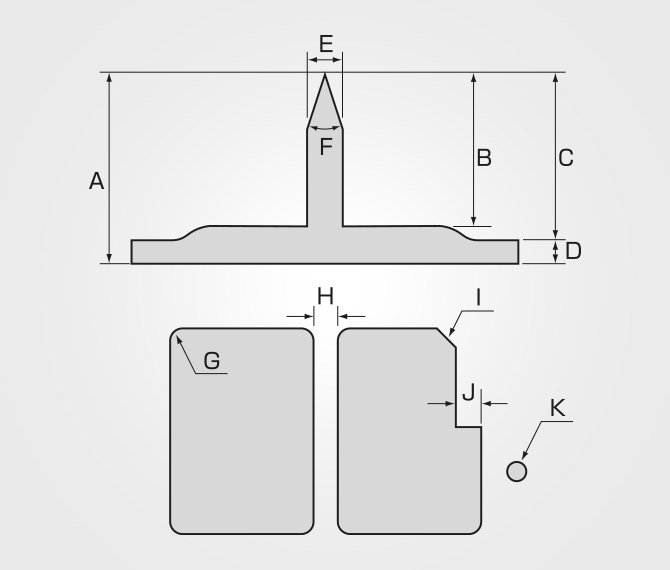

Cross-sectional view, dimensional drawing

  • NP Pinnacle Die <Patented>
    NP Pinnacle Die <Patented>

Standard specification of NP Pinnacle Die

Standard product (NP) Hardness HRC46

For flat die cutting
A: Edge height 1.2 2.0 3.0
B: Edge depth 0.9 1.3 2.2
C: Etching depth 1.0 1.5 2.4
D: Base thickness 0.2 0.5 0.6
E: Edge thickness 0.3 0.4 0.4
F. Edge angle 30°, 40°, 50°, 60°, 80°

単位:mm

G: Min. radius 0.1 0.1 0.1
H: Min. line gap 0.9 1.0 1.2
I: Min. C-face 0.3 0.3 0.3
J: Min. crank 0.2 0.2 0.2
K: Min. diameter 0.9 1.0 1.2

Unit: mm
Specification for edge angle 40°

Examples of use

  • For stickers and labels
    For stickers and labels
  • For window-envelops
    For window-envelops
  • For machining electronic equipment components
    For machining electronic equipment components
